配液系统
当前位置: 首页 > 产品及服务 > 制药设备 > 注射剂配套产品 > 配液系统

配液系统

时间:2024-09-13   访问量:

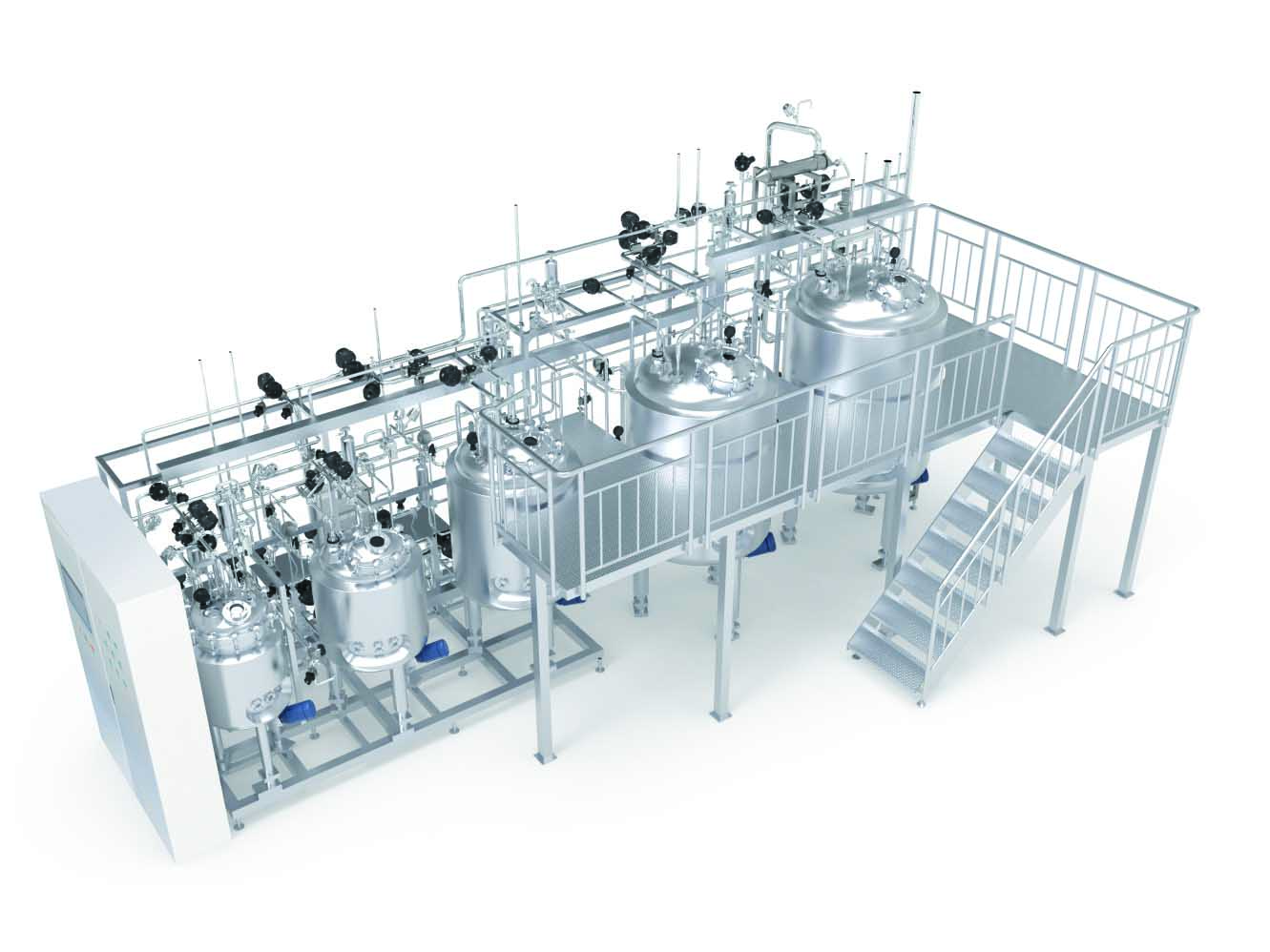

配液系统 拷贝.jpg

产品简介Product Introduction

用于各种缓冲液、佐剂、纯化试剂、阻断剂等的配制以及输送。

采用模块化设计,容积:10~10000L

全自动CIP/SIP

采用上搅拌或下搅拌装置,实现液液混合、固液混合

多种加料方式可满足固体粉末加料、母液加料、注射用水的加料

可选择液位计量或称重计量,实现物料的自动计量

联动pH传感器以及酸、碱泵,实现pH的自动调节

可实现物料的无菌输送,输送管路上的液体滤器可实现在线灭菌以及在线完整性检测

配备温控单元,实现快速升温、快速降温以及低温保存

For the preparation and transfer of various buffers, adjuvants, purification reagents, blockers, etc.

Module design assembly technology, capacity 10~10,000L;

Fully automatic CIP and SIP;

Use upper stirring or bottom stirring device to achieve liquid or liquid mixing ,liquid and solid mixing;

Various feeding methods can meet the requirements of solid power feeding, mother liquor feeding and WFI feeding;

Level measurement or weighting measure is optional, to achieve material auto-metering;

Link pH sensor and acid and alkali pumps to achieve pH adjustment automatically;

Aseptic material transport, the liquid filter on the transfer pipeline enables on-line sterilization or on-line integrity detection;

Equipped with temperature control unit for rapid temperature increase, rapid temperature drop and cryogenic preservation.



产品优势Product Advantages

生物疫苗生产线Biological vaccine production line

品种丰富,主要针对疫苗、基因重组、单克隆抗体等生产所需培养基、缓冲液的配制。

无菌要求高,特别是灌装前的无菌对接。

It is rich in variety, mainly for the production for required culture medium,buffer preparation of vaccines, genetic recombination, monoclonal antibodies.

Aseptic requirements are high, especially aseptic docking before filling.

水、粉针、大输液、诊断试剂生产线Water, powder injection, large infusion, diagnostic reagent production line

品种多,残留量要求少,对设备的无菌性要求高;WFI经过双管板换热器冷却后自动添加;采用蠕动泵添加液体物料,实现物料循环脱碳、自动除菌过滤。

Many varieties, less residue requirements, high requirements for the sterility of the equipment.

The WFI is automatically added after cooling by the double tube sheet heat exchanger.Achieve material cycle decarburization, automatic sterilization filtration.

脂肪乳生产线Fat emulsion production line

采用升降式搅拌、下磁搅拌装置或上机械搅拌,可无极调速,通过高剪切混合泵、均质机来实现产品乳化。物料管路上采用卫生级U型管式换热器来进行制品降温。

Using elevating stirring, the bottom magnetic stirring device, upper mechanical stirring device, stepless speed regulation.Product emulsification by high shear mixing pump and homogenizer.Hygienic U-tube heat exchangers for material cooling.

食品、饮料生产线Food and beverage production line

采用行业内专用防混阀,物料管路上采用卫生级U型管式换热器来进行制品降温,物料出液管路具备过滤装置。

Adopt special anti-mixing valve in the industry.Hygienic U-tube heat exchangers for material cooling.The material outlet pipe has a filtering device.
